Industrial Shredder Machines

Single shaft and double shaft shredder machines for difficult waste materials.

Compare single shaft shredders for screen-controlled output with double shaft shredders for bulky primary reduction. Explore standard and heavy-duty models, material examples, and the features that affect machine selection.

Compare Machines Request a Shredder Quote

Factory-built machines

Single shaft, double shaft, and heavy-duty configurations are selected after material review.

Single shaft Controlled screen output

Double shaft Primary bulky reduction

China-based shredder factory

Material reviewed before quote

Standard and heavy-duty options

Configuration for the next processing step

Machine Direction

Choose the shredder by material, output size, and feeding condition

Single shaft and double shaft shredders solve different size-reduction problems. Start with the material form, required output, capacity target, and working condition before selecting the model.

Screen-Controlled Output

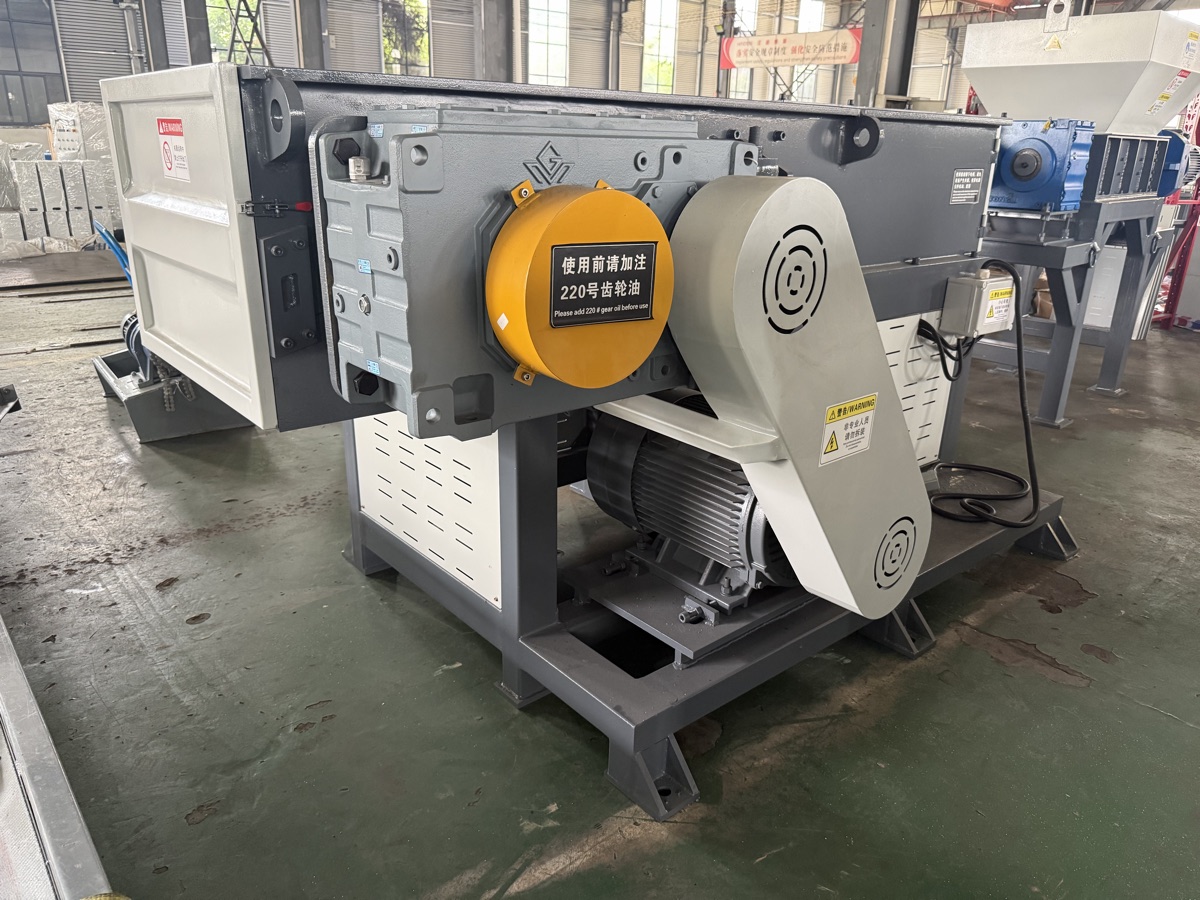

Single Shaft Shredder Machine

Controlled output size for plastics, paper, wood, cable, aluminum, fiber, and selected industrial waste.

Output logic Material passes through a screen, so output size can be controlled more closely.

Feeding logic Hydraulic pusher feeds the material into the rotor.

Plastic lumps and purgings
Industrial paper and cardboard
Wood waste, cable, aluminum, textile waste

View Single Shaft Shredder

Bulky Material Pre-Shredding

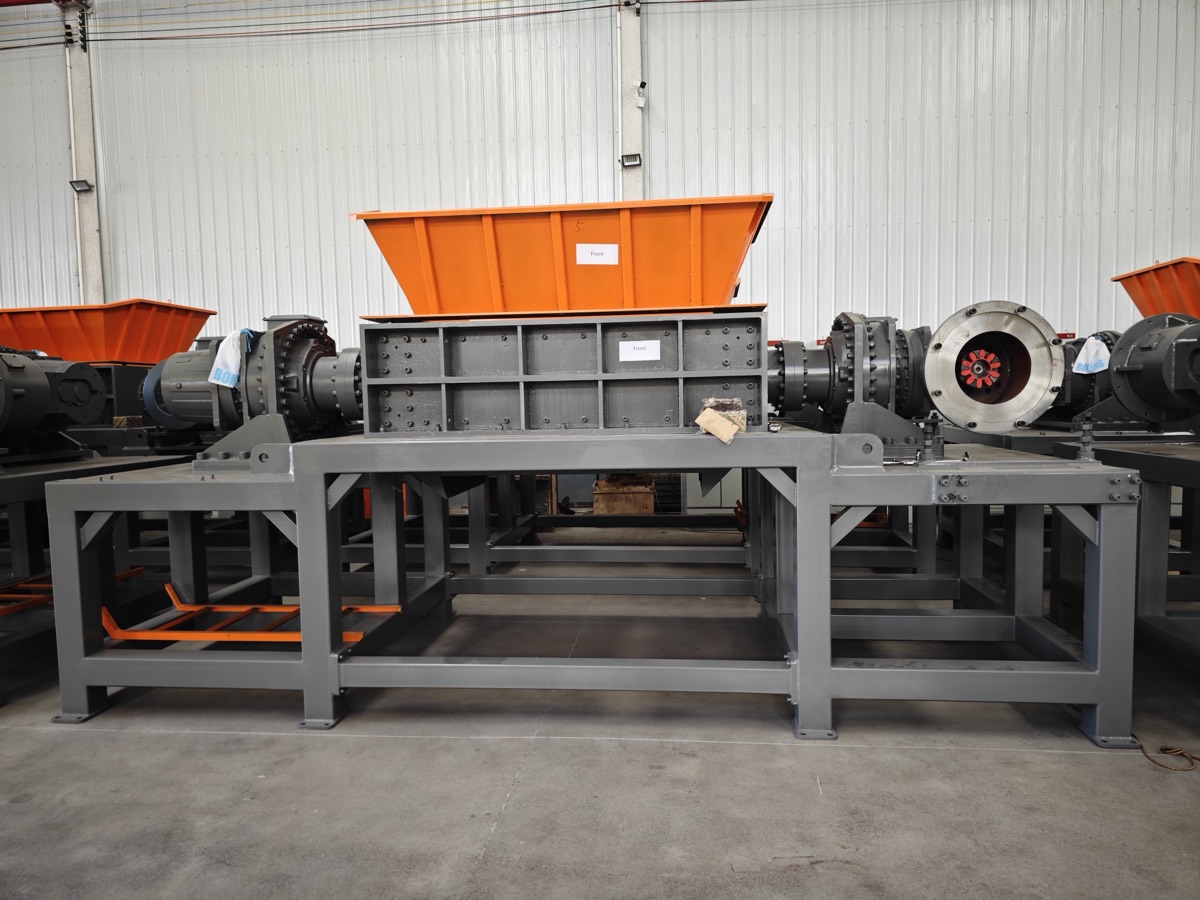

Double Shaft Shredder Machine

Primary volume reduction for bulky, mixed, irregular, and hard-to-feed material streams.

Output logic Output is mainly affected by cutter width, tooth profile, speed, and material condition.

Feeding logic Two rotors grab, tear, and pull bulky material into the cutting chamber.

Whole tires and bulky waste
Mixed solid waste and RDF feedstock
E-waste, light metal, pallets, containers

View Double Shaft Shredder

Material Match

Industrial shredder applications by material

Compare the common feed forms below and follow the application links for material-specific machine options and output uses.

Application

Waste tires

Usually double shaft for whole tires; single shaft may be used for controlled secondary sizing.

View Tire Shredder Application

Application

Plastic scrap

Single shaft for screen-controlled output; double shaft for bulky hollow or mixed plastic pre-shredding.

View Plastic Shredder Application

Application

Industrial paper waste

Single shaft for controlled paper output; double shaft for bulky rolls, bales, or primary destruction.

View Paper Shredder Application

Application

Mixed solid waste

Double shaft is usually evaluated first because grabbing force and primary volume reduction matter most.

View Solid Waste Application

Application

E-waste and appliances

Single or double shaft depends on security level, feed size, output requirement, and the next recovery step.

View E-Waste Shredder Application

Application

Metal scrap and aluminum

Double shaft for bulky metal pre-shredding; selected single shaft options can be evaluated for controlled output.

View Metal Shredder Application

Selection Process

A better quote starts with material review.

Select for the load the machine will handle every day. Material behavior, the next processing stage, and operating hours guide the chamber, rotor, drive, and feeding choices.

Send Material Details

Read the single shaft vs double shaft selection guide →

Confirm the waste stream

Material type, shape, hardness, contamination, moisture, density, and maximum feed size decide whether a standard or heavy-duty configuration is realistic.

Define the output goal

Rough volume reduction, controlled screen output, security destruction, RDF preparation, pulping preparation, or further size reduction all lead to different machine choices.

Match capacity and working hours

Hourly capacity, continuous operation, feeding method, and site layout affect motor power, chamber size, rotor design, conveyor layout, and overload protection.

Quote the configuration

BoRay recommends single shaft, double shaft, standard, or heavy-duty shredder configurations after reviewing your actual material and process target.

Industrial Configuration

Match the drive, cutters, and controls to the job

Drive system, cutter design, control logic, and factory configuration all affect whether the shredder can run reliably with your material stream.

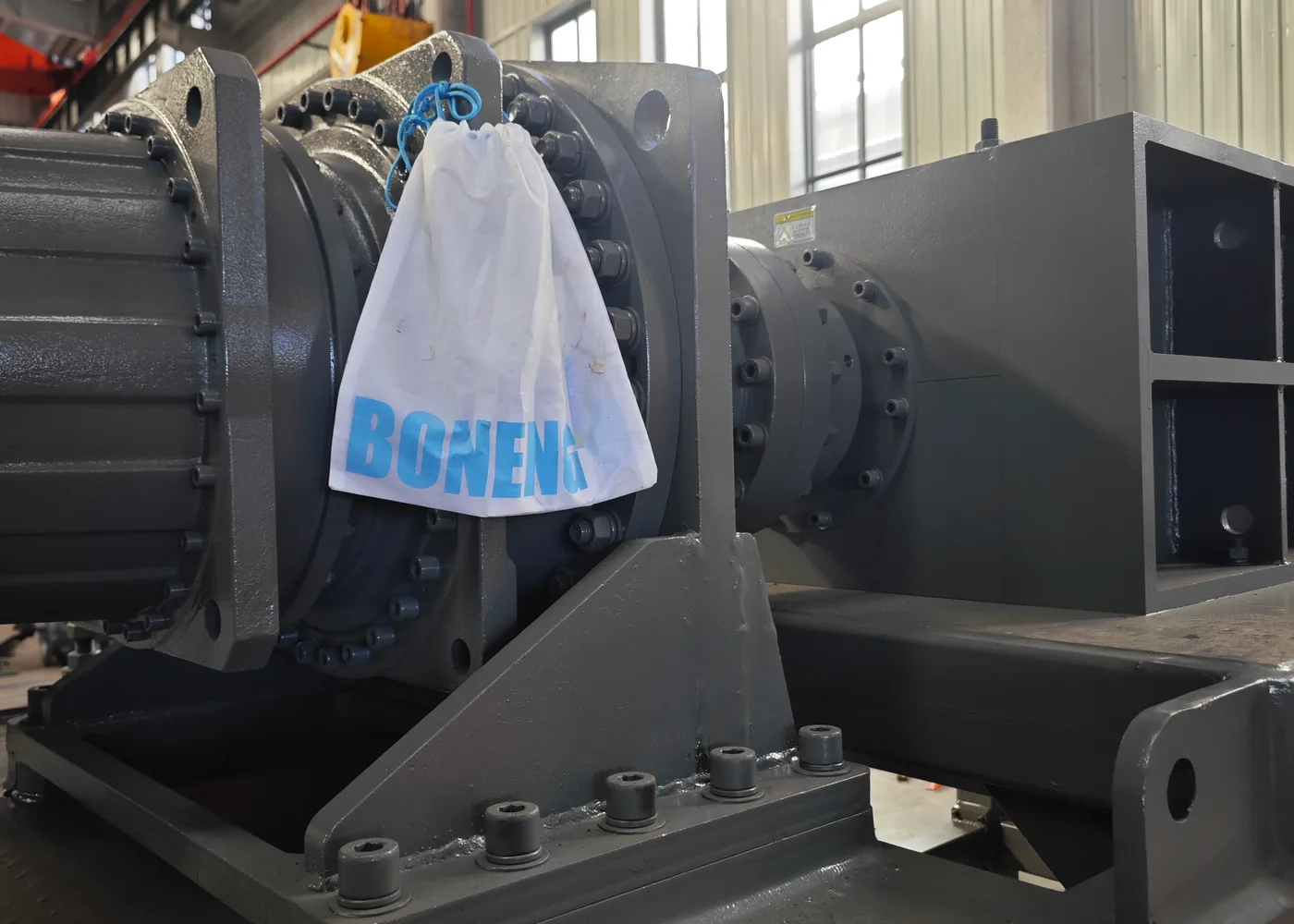

Low-speed high-torque drive

Configured for industrial waste streams where pulling force, cutting stability, and overload protection matter more than high-speed cutting.

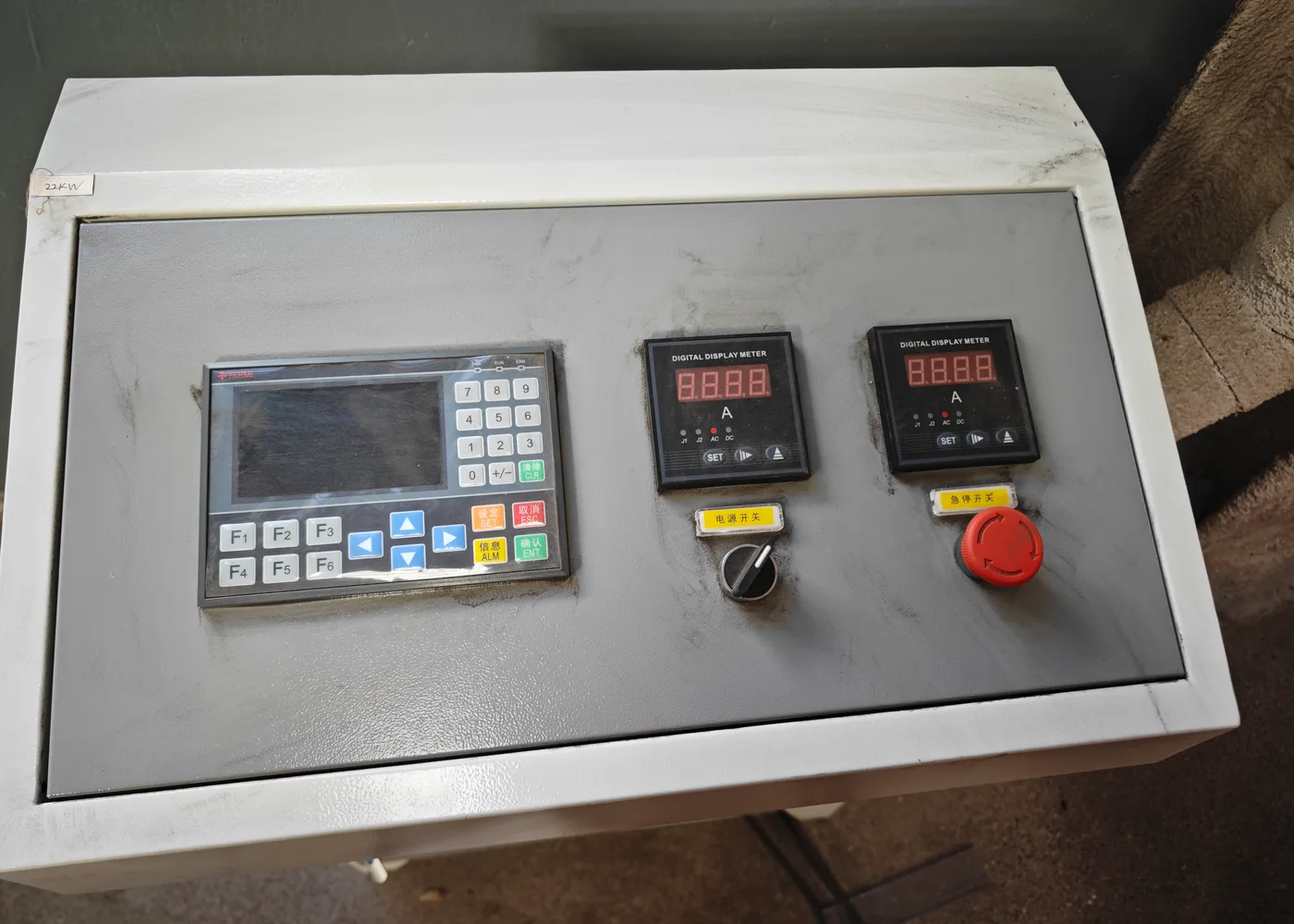

PLC overload protection

Automatic reverse logic helps release overloaded material and reduce manual intervention during heavy feeding.

Cutter and rotor selection

Cutter material, blade width, rotor diameter, screen opening, and tooth profile are matched to the material and output target.

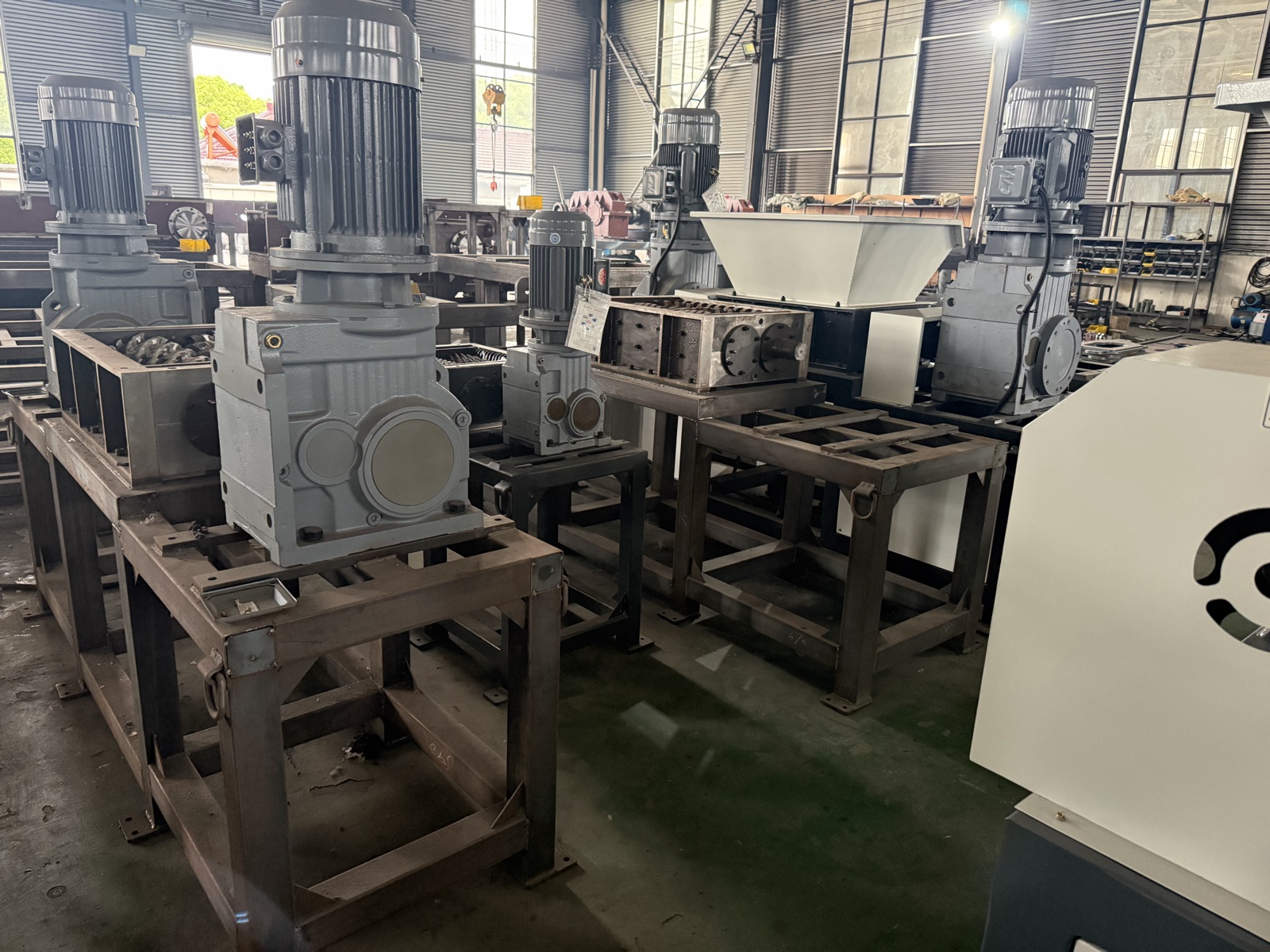

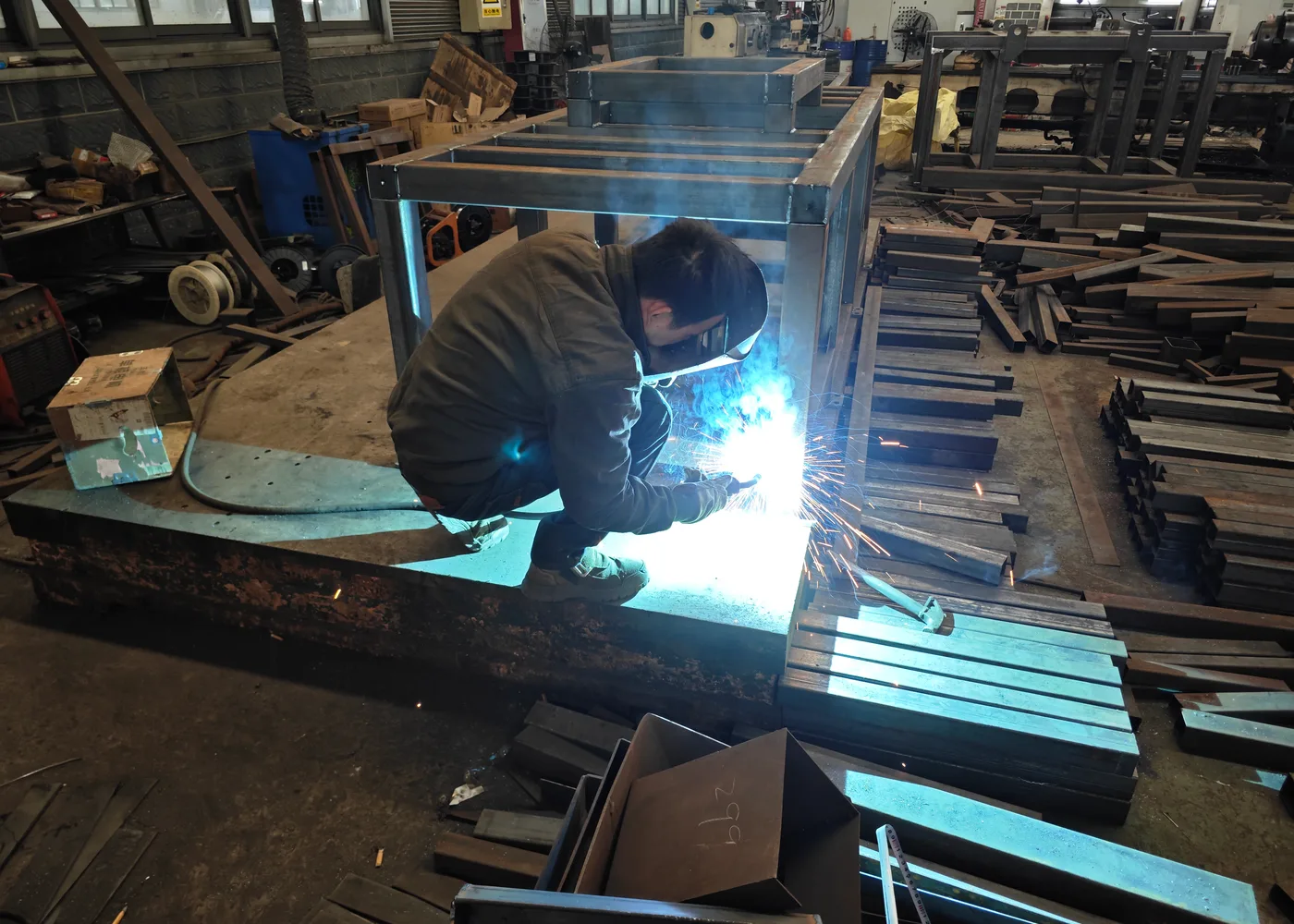

Factory-built configuration

BoRay manufactures and configures industrial shredders for waste processors, recyclers, paper mills, and material recovery projects.

Not sure which machine fits your material?

Describe the feed and the next processing stage. We will help narrow the model options and explain the configuration choices.

Check My Material

Request a Shredder Quote

Send your material details for single shaft or double shaft selection.

Start with the material and the result you need. The checklist helps us prepare a model recommendation; you can send an inquiry before every specification is known.

Material photos or short video

Maximum feeding size and material thickness

Target output size or next processing step

Capacity target and daily working hours

Feeding method, discharge method, and site limitations

Any hard contaminants, moisture, metal, or special safety requirements

Machine FAQ

Industrial shredder machine questions from buyers

These answers help narrow the first selection before a detailed engineering quote.

Should I choose a single shaft or double shaft shredder machine?

Choose a single shaft shredder when controlled output size is important. Choose a double shaft shredder when bulky feeding, strong grabbing force, and primary volume reduction are more important than precise output size.

Can BoRay quote a shredder machine without material details?

You can start with a material description or photo. We will clarify feed size, output, capacity, working hours, and the next processing step before confirming the model and quotation.

Can conveyors or separation equipment be discussed with the shredder?

Yes. Feeding and discharge can be matched to conveyors, screens, magnetic separation, dust collection, and other equipment interfaces. Share your existing layout or planned process when discussing the shredder.

Are standard and heavy-duty configurations available?

Yes. BoRay machine pages explain standard and heavy-duty configurations. Final selection depends on feed size, material difficulty, capacity target, and operating hours.
